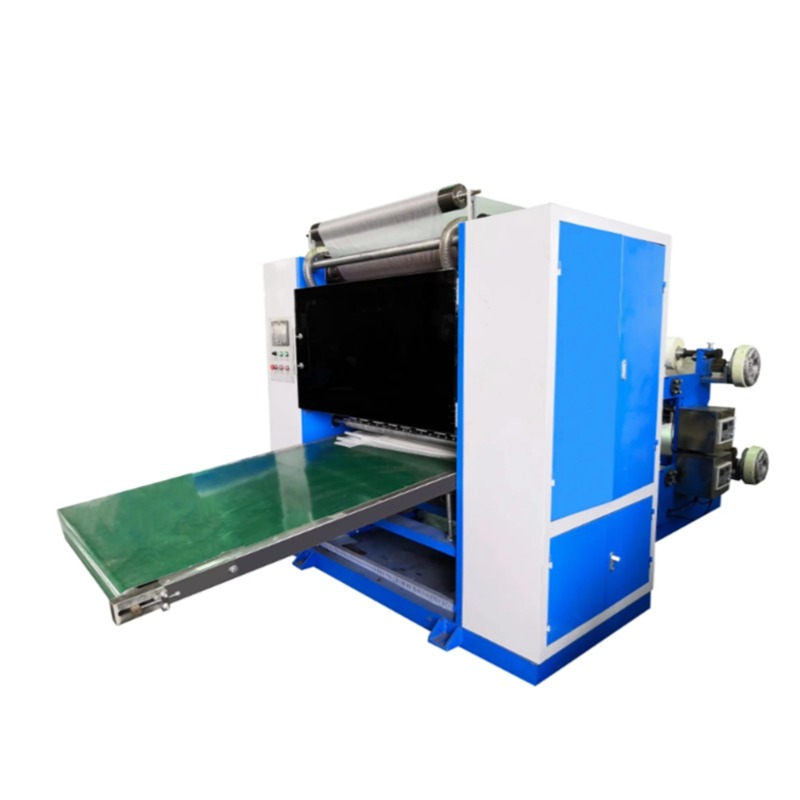

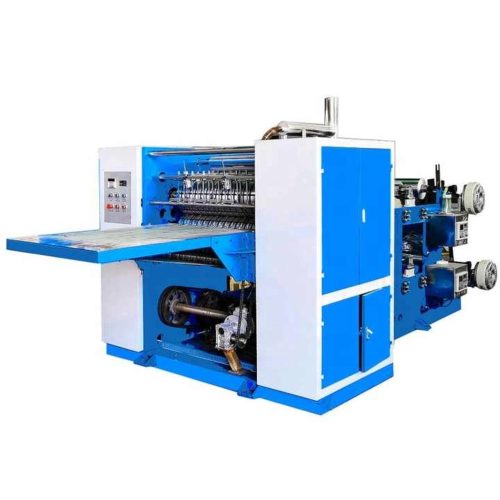

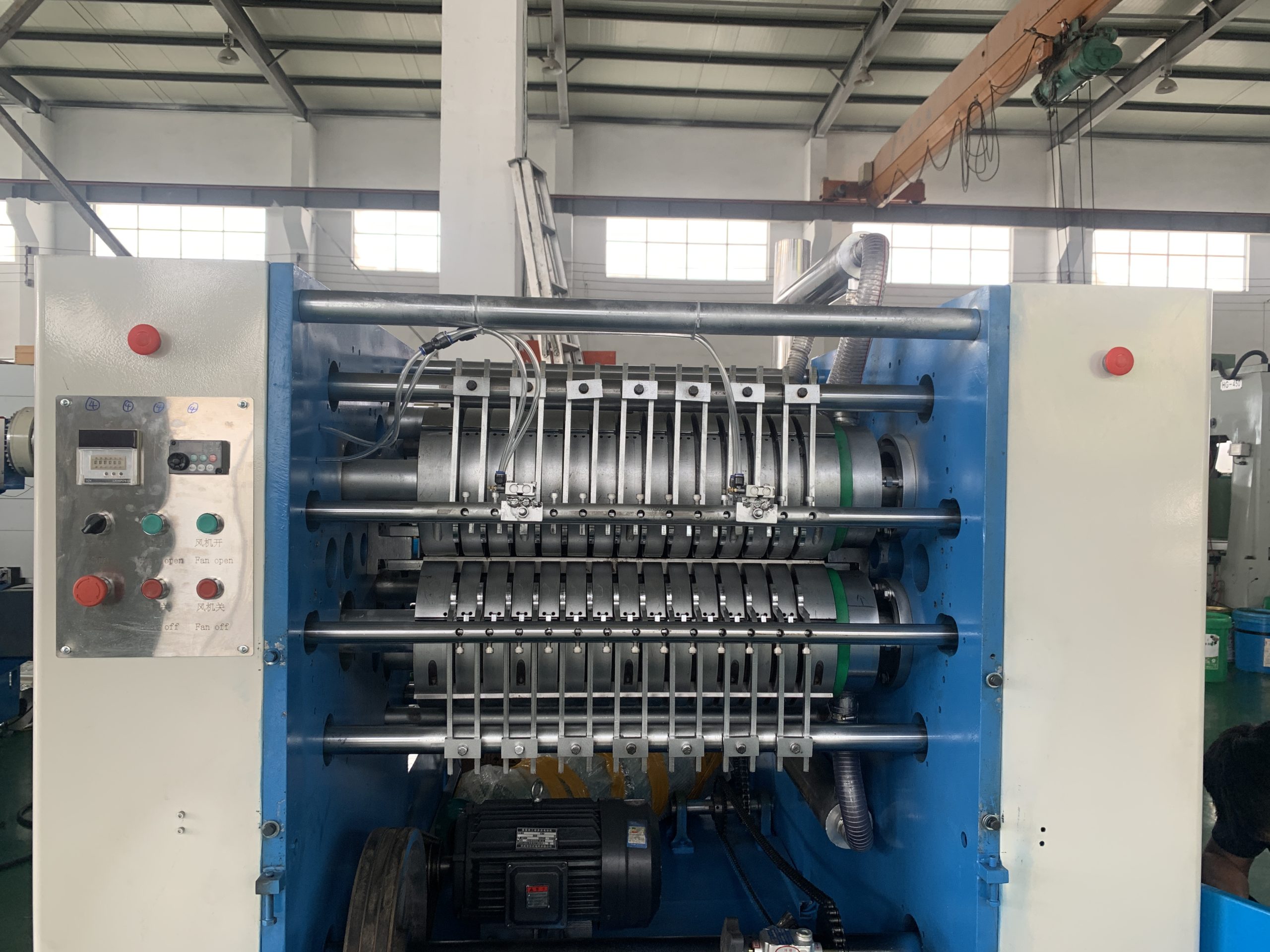

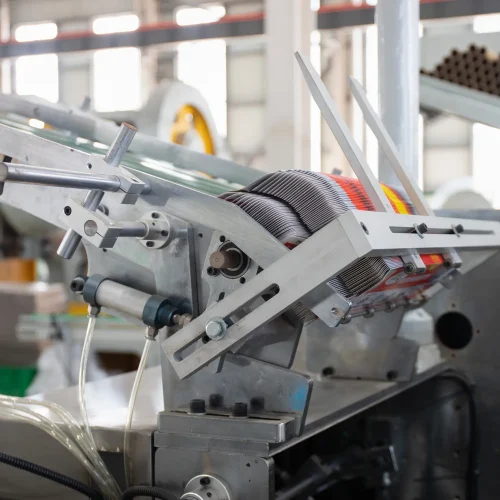

Our Pop-Up Aluminum Foil Sheet Machine is designed for high-efficiency production of precise and hygienic foil sheets, ideal for various industrial applications.
With advanced technology and user-friendly controls, it ensures consistent quality, minimal waste, and enhanced productivity.
Technical Data
Model | PKO-680 |
Function | Aluminum foil sheet cutting |
Raw Material | Aluminum Foil |
Material Thickness | 10~20 micron |
Mother Roll Core Diameter | 76mm |
Max Mother Roll Diameter | Max.800mm |
Mother Roll Available Width | Max.610mm |
Sheet Open Size(L*W) | 273*304.8mm |
Folded Sheet Size(L*W) | 135*304.8mm |
Fold Shape | V/Z shape interlocking 3-5mm fold angle |
Working Speed | 400~500pcs/min（2 or 3 lanes） |

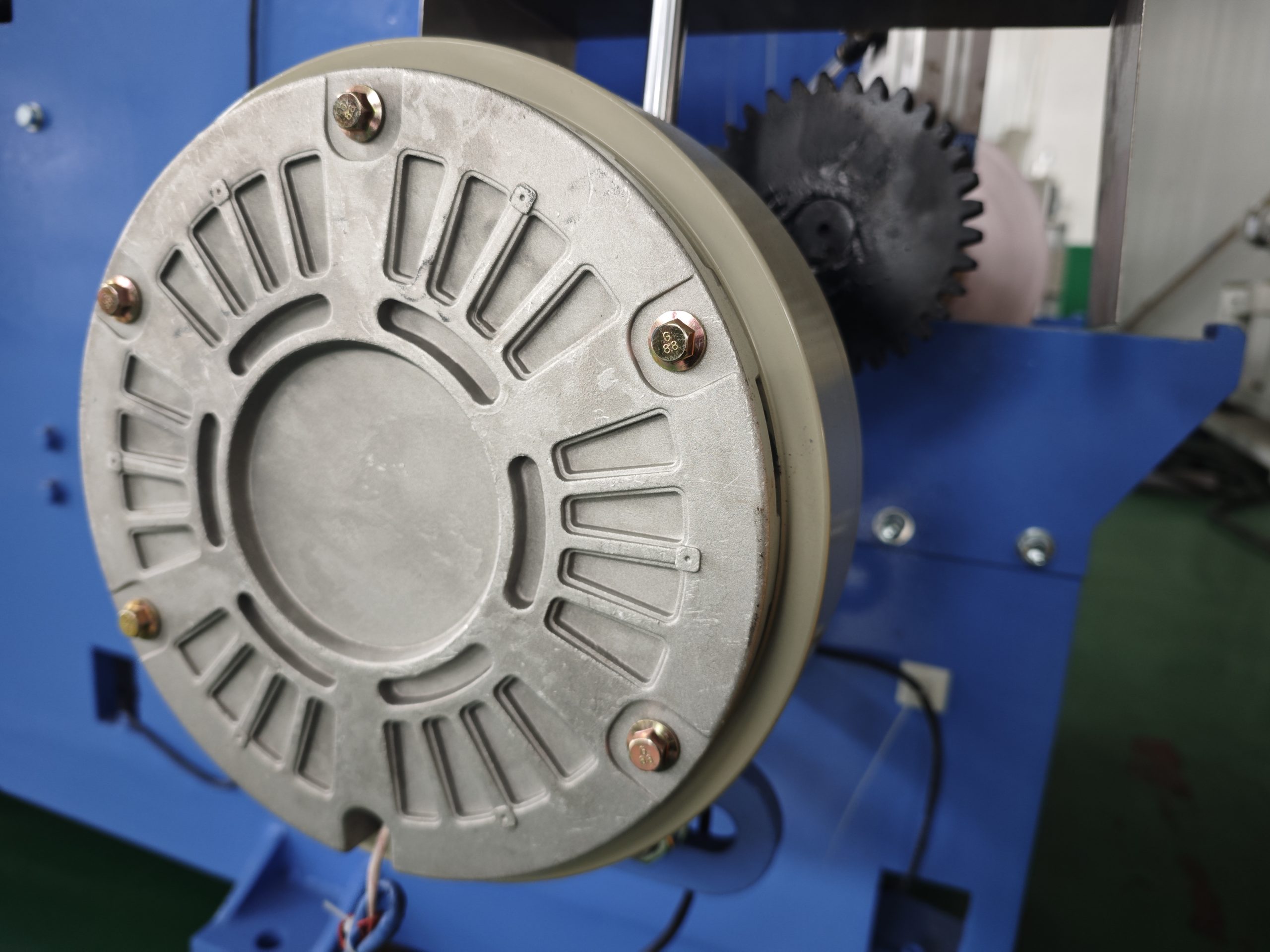

Installed Power | 27KW(22kw roots vacuum pump+4kw main motor+1kw tension) |
Power Supply | 380V 50Hz 30ph+N+E |
Air Pressure | 0.5~0.8Mpa,300L/min |
Dimensions(L*W*H) | 5000*2000*1700mm |
Net Weight | 4000kg |
Gross Weight | 5500KG |

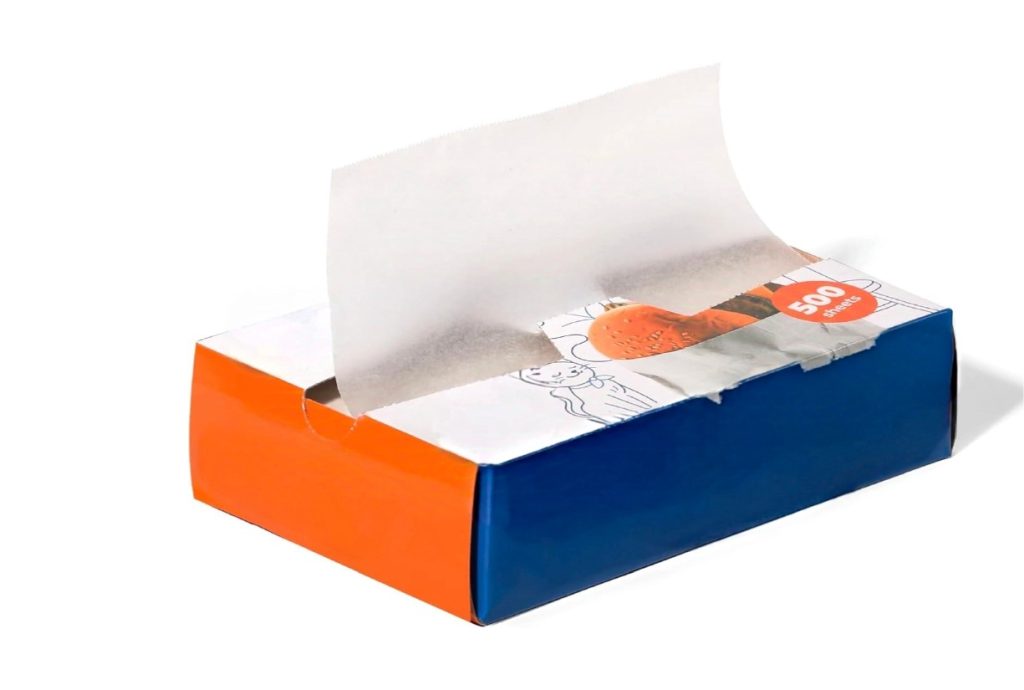

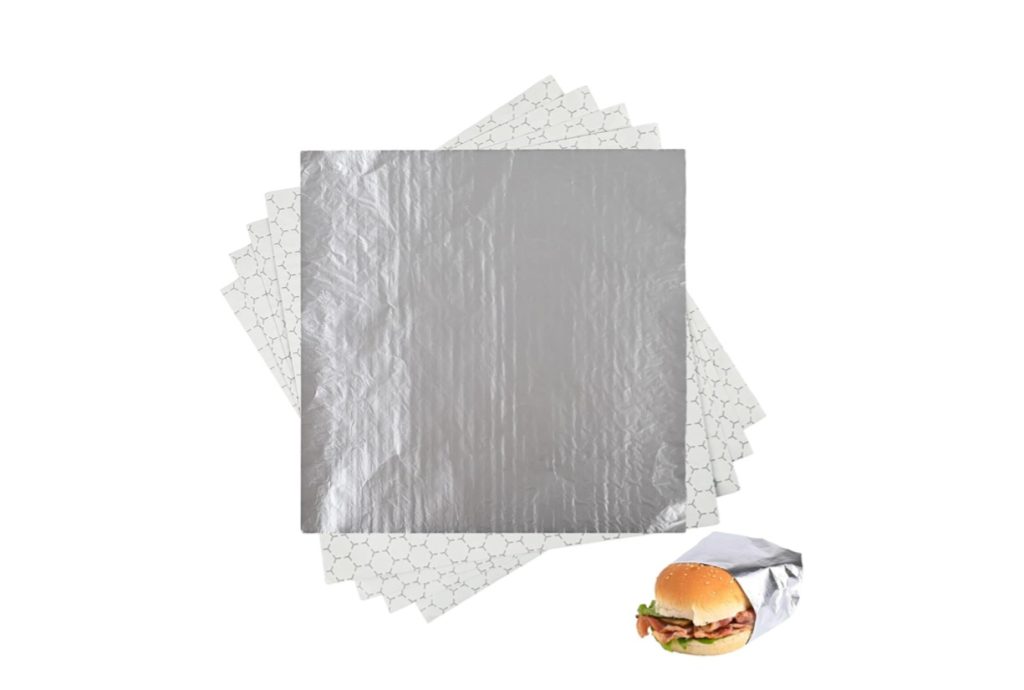

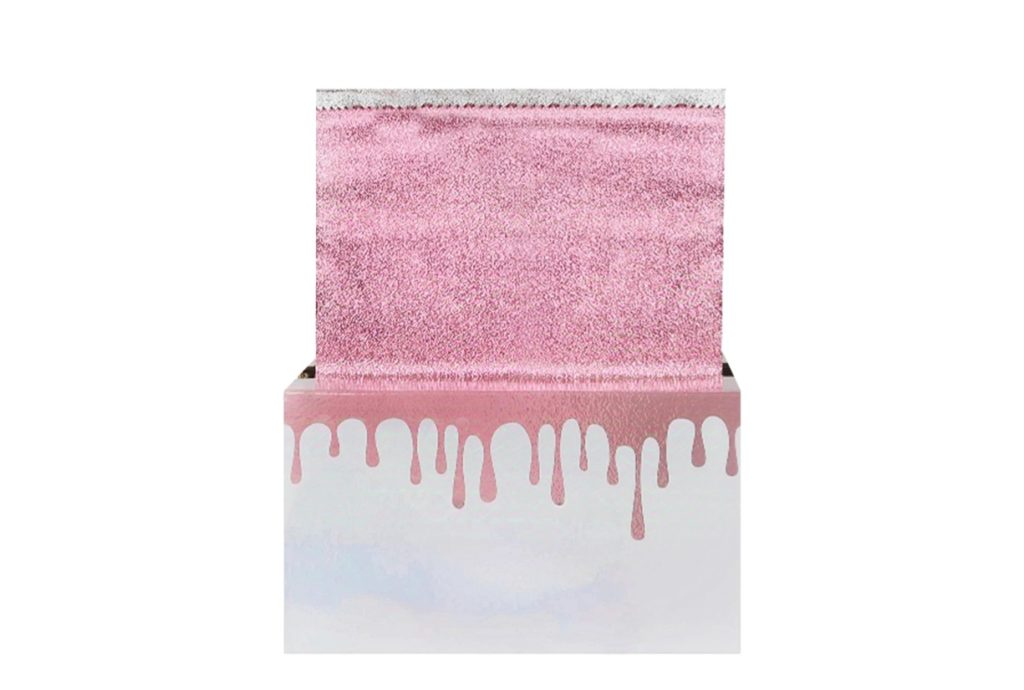

Machine Application
